What is AlgoMesh?

AlgoMesh® is a powerful mesh generator and groundwater modeling tool. It provides fast generation of high-quality unstructured grids for MODFLOW-USG, HydroGeoSphere and other finite-volume and finite-element simulation software. Scroll down to see the full list of features.

A fully-functional 30-day trial of the software is available on request. Please contact us at info@hydroalgorithmics.com to request a trial.

Purchase AlgoMesh

AlgoMesh is available at the price of A$1950* for a single-node license. Click here to buy now, or contact us for other purchasing options. Discounts are available on request for academic use of the software, and for multiple license purchases.

* Pricing is in Australian Dollars (AUD) and excludes taxes. Customers in Australia will be charged an additional 10% GST at checkout.

We accept online payments by VISA, Mastercard, American Express and Diners Club cards. If you would like to pay in a currency other than AUD, or to pay by purchase order, please get in touch with us and we will issue you with a formal quotation.

Features

Mesh Generation

  • Rapidly generate high-quality unstructured Voronoi and triangular grids

  • Choice of state-of-the-art mesh generation algorithms
    • High-quality multi-level optimization
    • Fast Delaunay refinement
  • Default parameter settings and quality presets allow generation of good meshes without much need for parameter adjustment
  • Optional advanced parameter settings allow fine-tuning of generated meshes to optimize cell quality and minimize the number of cells

Flexible Geometry Input

  • Import points, polylines and polygons from GIS or CAD data, or digitize manually in the AlgoMesh user interface
  • Easily create holes or cut out unnecessary areas of a model
  • Resample polylines for precise control over input point spacing and resulting mesh cell sizes
    • Fixed or geometric intervals between points
    • Easily adjust sampling intervals and regenerate the mesh from the same input geometry, without the need to import again each time
  • Fit cubic spline curves to input polylines to represent curvilinear model features

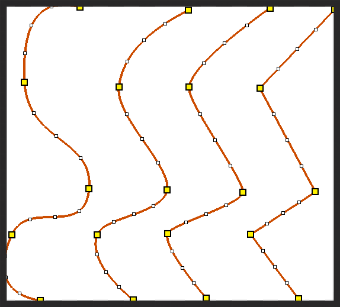

    • Splines have adjustable tension to control curve shape, from smoothly curving (low tension) to almost linear (high tension)

Powerful Modeling Tools

  • Create any number of property value fields to be sampled over a model
    • Anything from a set of sample points with associated values (e.g. a regular grid) to a complex polygonal domain may be used
    • Interpolate property values at any point in the mesh

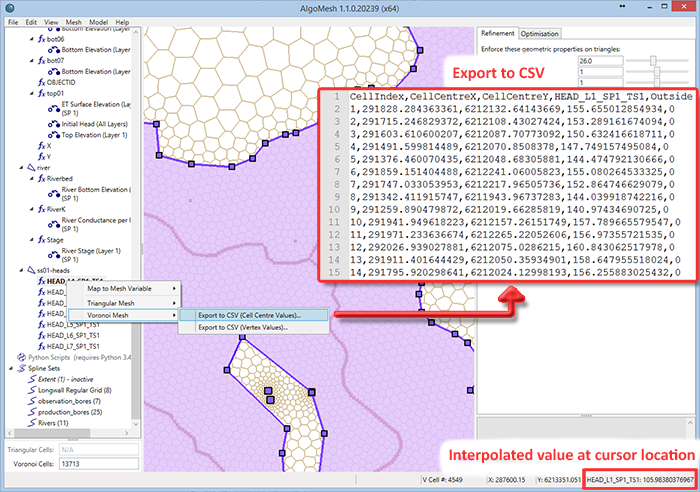

    • Export interpolated property values at mesh cell centers or vertices to CSV or common GIS formats
  • Select cells at boundaries, along streamlines, at points or within polygons, to aid in constructing model boundary conditions.

MODFLOW-USG Support

  • Export generated meshes to MODFLOW-USG model files
    • Single or multiple layers
    • Steady-state or transient
  • Voronoi cells guarantee perpendicular flow directions between cells for accurate finite-volume simulation
  • Map TIN-interpolated or polygon property fields to cell properties
    • Layer bottom and top elevations
    • Hydraulic conductivity (Kx, Kz)
    • Specific storage
    • Specific yield
    • Initial head
  • Use property fields to generate model boundary condition files
    • Pumping wells (WEL)
    • Drains (DRN)
    • Constant head boundaries (CHD)
    • General head boundaries (GHB)
    • Recharge (RCH)
    • Evapotranspiration (EVT)
    • Rivers (RIV)
    • Time-Variant Materials (TVM)
    • ... and more to come!
  • Import CSV files to directly map boundary conditions and property data on a per-cell basis
  • Export interpolated property values at cell centers to assist in manual creation of input files for other MODFLOW-USG packages
  • Use Lateral Connection Groups to precisely control the generation of lateral flow connections in the MODFLOW-USG discretization file
    • Create vertically-nested grids (vertical sub-discretization)
    • Generate cross-strata connections to simulate flow across vertical faults
    • Construct vertical flow barriers that block lateral flow entirely
  • Import binary head and drawdown results from MODFLOW-USG as property fields
    • Export to CSV for visualization in other software (e.g. Surfer®)
    • Reuse steady-state heads as initial heads in a transient simulation
    • Automatically interpolate heads onto a new or modified mesh

HydroGeoSphere™ SUPPORT

  • Create high-quality 2D triangular meshes and export in .AH2 format for use in fully-integrated HydroGeoSphere™ (HGS) models
  • HGS grok script command "read algomesh 2d grid" allows building a 3D HGS model from an .AH2 file
  • Select node and element sets within polygons, along polyline paths, or manually, and export nchos and echos format selection sets to build boundary conditions.

Interoperation with Other Tools

  • Use AlgoMesh as a powerful alternative mesh generator for FEFLOW®
    • Optionally import FEFLOW® ASCII supermesh (.smh) files
    • Export triangular mesh shapefiles for import into FEFLOW®
  • Import points, polylines and polygons from many common GIS and CAD formats
    • SHP, DXF, DGN, MID/MIF, GML, BNA, GEOJSN, XYZ and more
  • Export cell geometry, vertices and vertex property values to many common GIS formats
    • SHP, MID/MIF, GML, BNA, GEOJSON and more
  • MODFLOW-USG export creates VTK format files for 3D visualization with ParaView®
